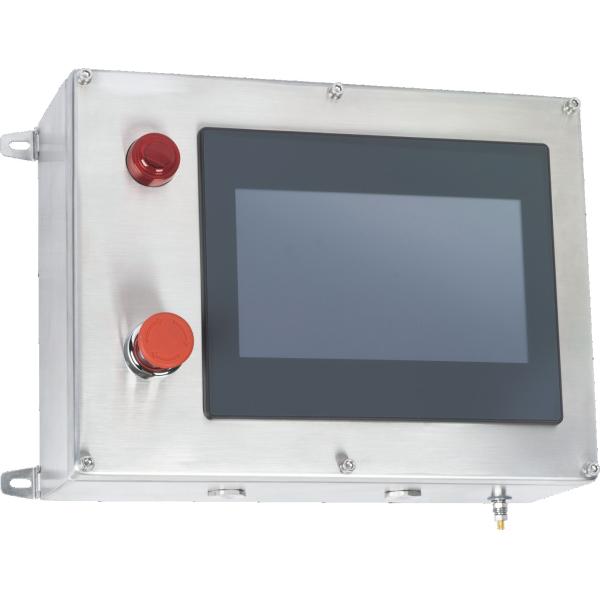

BZC-HMI Series Explosion-proof Touchscreen Ex Db Eb NA IIC

    Buy cheap BZC-HMI Series Explosion-proof Touchscreen Ex Db Eb NA IIC from wholesalers

    Buy cheap BZC-HMI Series Explosion-proof Touchscreen Ex Db Eb NA IIC from wholesalers
    • Buy cheap BZC-HMI Series Explosion-proof Touchscreen Ex Db Eb NA IIC from wholesalers

    BZC-HMI Series Explosion-proof Touchscreen Ex Db Eb NA IIC

    Ask Lasest Price
    Brand Name : WAROM
    Model Number : BZC-HMI
    • Product Details
    • Company Profile

    BZC-HMI Series Explosion-proof Touchscreen Ex Db Eb NA IIC

    Product Introduction

    BZC-HMI Series Explosion-proof Touchscreen Ex Db Eb NA IIC



    Specification
    Global (IECEx)IECEx (applied for)
    Gas and dust

    Ex db eb nA IIC T6 Gc

    Ex tb IIIC T80℃ Db

    Europe (ATEX)ATEX(applied for)
    Gas and dust

    II 3 G Ex db eb nA IIC T6 Gc

    II 2 D Ex tb IIIC T80℃ Db

    CertificatesIECEx; ATEX;
    Conformity to standardsEN; IEC
    Degree of protectionIP65
    Ambient temperature-0℃~+50℃


    Data
    Enclosure materialStainless steel
    Enclosure colourMetal colour
    Enclosure colourWindow grey(RAL7040)
    Exposed fastenerStainless steel
    Screen Size7.0 inches 9.0 inches 12.1 inches
    Resolution800×480 800×480 1280×800
    Rated voltage24V DC
    Rated current10A
    Internal&external earthingM6/M6
    Cable entriesStandard M□ x 1.5 plug.
    Cable gland (optional)DQM-II (Ex d),DQM-III (Ex d) is recommended
    MountingSurface type


    Download

    BZC-HMI Series Explosion-proof Touchscreen

    (Download here:icon_pdf.gifBZC-HMl Series Explosion-proof Touchscreen.pdf)
